What buyers are really asking from conveyor magnet suppliers in 2025
If you’ve been shopping around for conveyor magnet suppliers, you’ve probably noticed the specs are getting more practical and, frankly, less gimmicky. In heavy industry—steel, cement, mining—the real question is: who gives you reliable ferrous removal without eating belts or throttling throughput? That’s where a solid magnetized slag discharge drum earns its keep. I’ve seen lines go from hours of weekly cleanouts to quick visual checks, which, to be honest, operators appreciate a lot more than glossy brochures.
Industry trend snapshot
Two clear shifts: higher-gauss rare-earth cores for compact lines, and better sealing for abrasive fines. Actually, uptime beats peak Gauss on spec sheets in real plants. The newer slag discharge conveyor drums are built to sit at the head or tail pulley and quietly pull tramp metal before it becomes a belt puncture or a crusher event. Some buyers tell me they want simpler maintenance—swapable lagging, IP-rated housings, and bearings that don’t run hot at 2.5–3.0 m/s belt speeds.

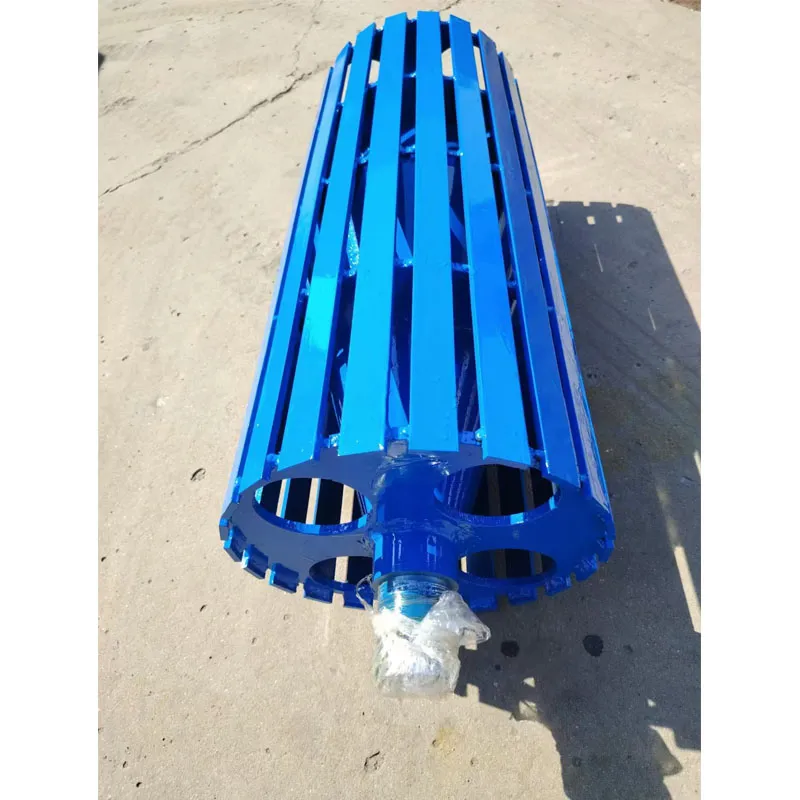

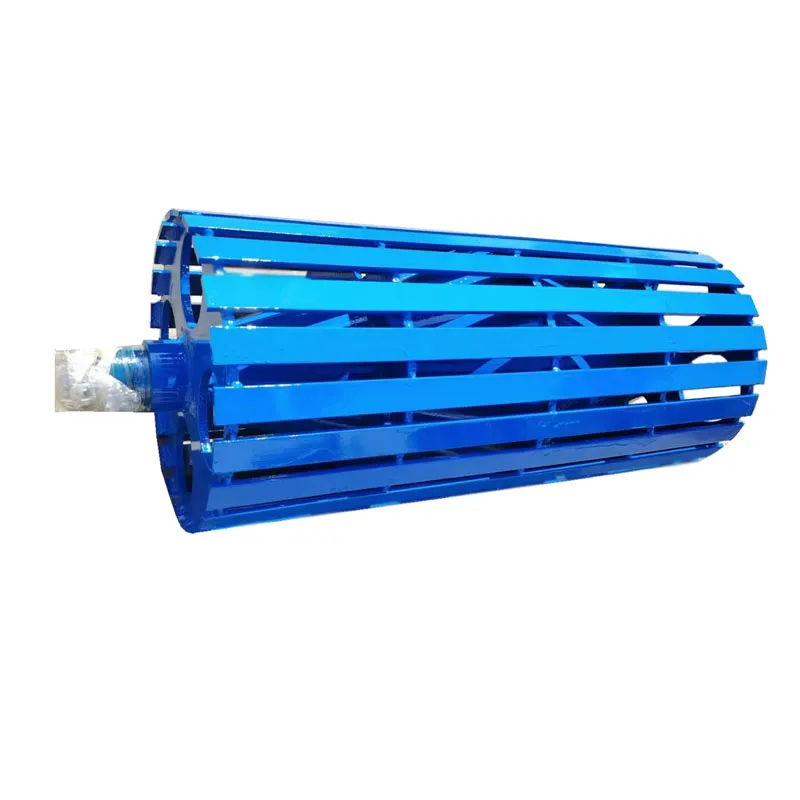

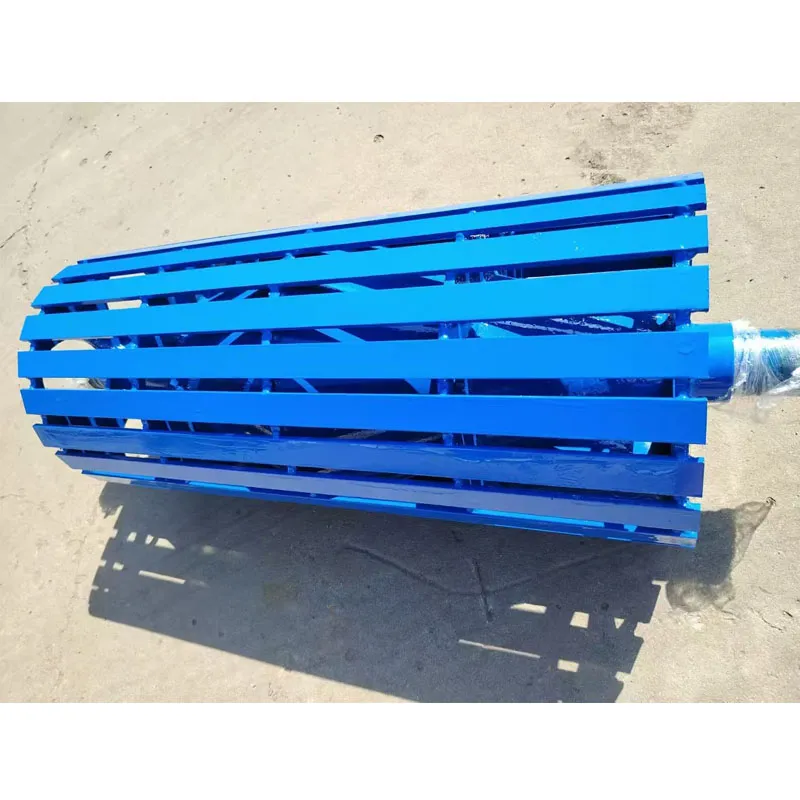

Product: Slag Discharge Conveyor Drum (magnetized option)
Origin: Room1109, Building C, Tianshan Galaxy Plaza, No. 358 Yuhua East Road, Shijiazhuang High tech Zone, Hebei Province. Intended to remove impurities on-line—either magnetically (ferrous) or via scraper configurations. Here’s a representative spec set (real-world use may vary).
| Model Range | Ø220–Ø630 mm; face width 500–1600 mm (custom) |
| Shell Material | Q235 carbon steel or SS304 (abrasion ↑) |
| Magnetic Core | Ceramic ferrite or NdFeB rare-earth |
| Gauss at Belt | ≈800–4500 G (setup dependent) |
| Lagging | Smooth rubber, diamond, or ceramic tiles |
| Bearings | SKF/NSK equivalents |
| Ingress Protection | IP65–IP66 (sealed ends) |
| Max Belt Speed | up to ≈3.5 m/s |
| Temperature Window | -20 to 120°C (high-temp options) |
| Certifications | ISO 9001; materials EN 10204 3.1 |
How it’s built and tested (short version)
- Materials: balanced steel shell, high-coercivity magnets, vulcanized lagging.
- Methods: dynamic balancing to ISO 1940 Grade ≤G2.5; precision concentricity.
- Testing: Gauss mapping per IEC 60404; runout ≤0.2 mm; salt spray per ASTM B117; bearing temp rise under load; IP splash tests.
- Service life: ≈5–8 years on cement/mining lines (media and maintenance matter).
- Industries: steelmaking, aggregates, RDF/biomass, glass cullet, recycling MRFs.
Comparing conveyor magnet suppliers
| Vendor | Lead Time | Core Material | Certs | Typical Gauss | Notes |
|---|---|---|---|---|---|
| HG Conveyor (slag discharge drum) | 3–5 weeks | Ferrite / NdFeB | ISO 9001 | ≈1200–4500 G | Strong customization |
| GlobalBrand X | 6–8 weeks | Ferrite | ISO 9001 | ≈900–2500 G | Good docs, higher price |
| Local Fabricator | 1–3 weeks | Ferrite (limited) | Varies | ≈800–1500 G | Fast, but uneven QA |
Customization checklist (learned the hard way): belt width and speed, burden depth, target particle size, tramp metal profile (wire, bolts, rebar), ambient heat, and washdown. Good conveyor magnet suppliers will ask these upfront.
Case note from the field
A cement plant retrofitted a slag discharge drum at the head pulley. Result: unplanned stops dropped from 6/month to 1/month; belt splice failures went down ≈40%. They logged magnetic pickup of nails and wire fragments up to 8 mm, belt speed 2.2 m/s, burden depth ~80 mm. Operators said fines didn’t cake under the housing after the switch to ceramic lagging—small detail, big difference.
Feedback, safety, and data points
- Maintenance crews like bolt-on end covers; 15–20 min inspection windows.
- Noise/vibration stayed within ISO 10816 limits post-balance; runout well under 0.2 mm in our spot checks.
- Safety: guards and LOTO procedures are non-negotiable; magnet field signage helps new staff.
Bottom line: pick conveyor magnet suppliers that publish Gauss-at-belt (not just core), show balancing certificates, and stand behind IP ratings. It seems obvious, but surprisingly many don’t.
References
- CEMA: Belt Conveyors for Bulk Materials, 7th Ed.
- IEC 60404: Magnetic materials—Measurement methods.
- ISO 1940-1: Mechanical vibration—Balance quality of rotors.
- ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus.
