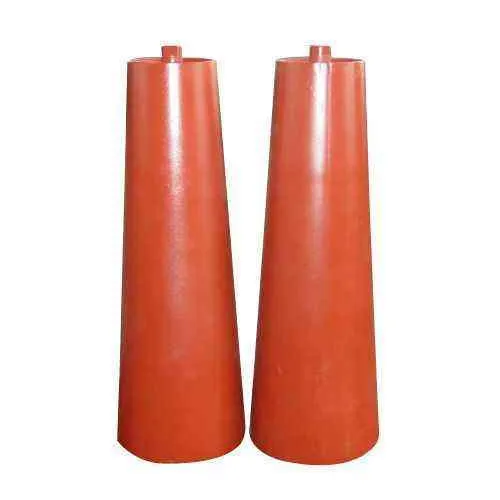

Cone Shaped Self-Aligning Roller

Cone rollers are usually a special form of self-aligning rollers installed on both sides of a conveyor belt. Its conical structure helps to generate a force that returns the conveyor belt to its center position when it deviates. Suitable for some conveyor systems that are sensitive to belt deviation, such as the conveyor links on highly automated production lines.

Conical idlers are divided into conical upward centering idlers and conical downward centering idlers, which have the characteristics of wear resistance, long service life, light weight, small rotational inertia, reliable sealing, and anti-corrosion performance. Cone roller is a product used in various transportation industries such as steel mills, power plants, docks, and coal mines.

The Conical Roller Has The Following Advantages And Functions:

Excellent wear resistance: The tapered roller has extremely high wear resistance and can be used under harsh conditions without easily wearing the belt.

Good self-lubricating property: Its superior self-lubricating property makes it less likely to get stuck under harsh conditions and does not require lubrication maintenance.

Anti static, ant

i combustion, and anti-aging: able to resist corrosion from acids, alkalis, and organic solvents, suitable for various harsh environments.

Enduring repeated impacts and vibrations: able to be used in repeated impacts and vibrations, with a long lifespan and smooth operation.

Wide temperature range for use: able to operate normally within a temperature range of -40 ℃ to 90 ℃.

Easy installation: Excellent mechanical performance, light weight, easy installation, no need for maintenance.

How Does a Self-Aligning Roller Enhance Conveyor Belt Accuracy?

In any material handling system, maintaining perfect belt tracking is essential to ensure smooth, efficient, and safe operation. A misaligned belt can lead to premature wear, spillage, and even damage to conveyor components. The self aligning roller was specifically developed to address this issue. Designed with a cone-shaped structure, it automatically guides the conveyor belt back to its central position whenever lateral movement occurs. This innovation drastically reduces downtime and maintenance while extending belt lifespan—a crucial benefit for industries handling high-volume or continuous processes.

Hebei Roule Conveyor Machinery Manufacturing Co., Ltd., with years of precision engineering experience, produces self-aligning rollers that combine intelligent design and durable construction. The roller’s conical shape ensures that when the belt drifts to one side, differential rotation speeds on each end create a correcting force that brings it back to alignment. This design principle is simple yet incredibly effective, eliminating the need for constant manual adjustment. The result is a smoother and more stable conveying process that minimizes material loss and mechanical stress.

Each roller is manufactured from high-strength steel and fitted with high-quality, sealed bearings to prevent contamination from dust, moisture, or debris. This ensures consistent performance in harsh conditions such as mining, cement, and chemical plants. The precision-balanced design also minimizes vibration and noise, improving both operational efficiency and workplace comfort. By integrating a conveyor belt self alignment system, Roule’s engineers ensure automatic correction across varying loads, speeds, and belt widths.

The benefits extend beyond alignment correction. With improved belt tracking, energy consumption decreases because frictional resistance remains minimal. Operators can achieve higher throughput without worrying about belt slippage or edge damage. Over time, this translates into significant cost savings on maintenance, replacement parts, and downtime.

As a trusted manufacturer, Hebei Roule focuses on delivering solutions that blend innovation with practicality. Our self-aligning rollers are easy to install, compatible with existing conveyor structures, and tailored to customer specifications. For facilities seeking reliability and operational excellence, investing in a cone-shaped self-aligning roller is an effective way to ensure optimal conveyor performance and long-term stability.

Why Are Self-Aligning Idlers Essential for Modern Conveyor Systems?

In modern conveying systems, the self aligning idler serves as a critical component for maintaining smooth belt operation under varying loads and working conditions. While standard idlers provide support, self-aligning idlers go a step further—they detect belt deviation and automatically guide it back to center. This self-correcting ability prevents uneven wear, extends belt life, and keeps material flow consistent. Whether in mining tunnels, power stations, or port facilities, self-aligning idlers ensure that conveyors perform efficiently and safely around the clock.

Hebei Roule Conveyor Machinery Manufacturing Co., Ltd. specializes in designing and producing high-quality idlers that withstand demanding environments. Our self aligning conveyor rollers are made using precision-machined components and corrosion-resistant materials, ensuring high concentricity and durability. Each unit is carefully assembled and dynamically balanced to provide vibration-free operation. The idler’s pivotal mechanism allows it to rotate slightly about its axis when the belt drifts, using frictional forces to guide the belt back to its neutral line. This continuous realignment process prevents costly belt-edge damage and minimizes spillage.

One of the key features of Roule’s idlers is their robust sealing system. Bearings are protected against dust, water, and chemical exposure, ensuring smooth rotation even under extreme conditions. The frames are fabricated from heavy-duty steel, and the overall structure can accommodate heavy loads and high-speed operation. As a result, customers experience reduced downtime, longer service intervals, and overall cost savings in maintenance.

Moreover, these idlers are designed with ergonomics and installation flexibility in mind. They can easily integrate into both new and existing conveyor frameworks without requiring structural modifications. The system’s self-regulating behavior ensures consistent performance even with uneven loading, making it an excellent choice for dynamic industrial environments.

For businesses aiming to enhance conveyor reliability, self-aligning idlers represent a smart investment. They bring automation to a crucial mechanical function, reducing human error and mechanical strain. Hebei Roule’s commitment to engineering excellence and customer satisfaction ensures that every product contributes to higher efficiency, greater safety, and sustained productivity across diverse industrial applications.

How Does a Self-Aligning Carrying Idler Optimize Long-Distance Conveyor Systems?

Long-distance conveyor systems face one persistent challenge—keeping the belt properly aligned across extended runs and varying terrain. The self aligning carrying idler provides the ideal solution, automatically correcting belt deviation during heavy or uneven loading conditions. Unlike traditional fixed idlers, these units feature a pivoting mechanism and a slightly conical roller profile that applies corrective force as soon as the belt begins to drift. This intelligent design ensures smooth operation, reduces edge wear, and maintains material stability throughout the conveying process.

Hebei Roule Conveyor Machinery Manufacturing Co., Ltd. designs each self aligning return idler with precision, using durable steel tubing, sealed deep-groove bearings, and thick end caps to resist impact and corrosion. These components are engineered to perform under the toughest industrial environments—whether it’s open-pit mining, port handling, or cement production. The idlers’ self-aligning function is activated by belt movement itself, eliminating the need for electronic controls or manual adjustment. This simplicity makes them not only reliable but also easy to maintain.

The cone-shaped geometry ensures that any lateral movement is automatically corrected as the belt’s frictional force acts unevenly on each side of the roller. This reaction generates a turning moment that guides the belt back to its center. Over time, this mechanism reduces power consumption, extends the lifespan of belts and pulleys, and enhances the overall operational stability of the conveyor system. Roule’s products are rigorously tested for dynamic balance, concentric accuracy, and load capacity to ensure dependable, long-term use.

For companies that operate under strict uptime demands, minimizing unplanned stoppages is essential. The use of self-aligning carrying idlers and return idlers dramatically reduces downtime caused by belt misalignment or material spillage. Additionally, these rollers require minimal lubrication and maintenance, lowering operational costs. The self aligning carrying idler frame can be customized according to conveyor width and load type, offering maximum compatibility with diverse conveying systems.

In an era where automation and efficiency define industrial success, Roule’s self-aligning roller technology provides a cost-effective way to optimize conveyor performance. By combining structural strength, intelligent mechanics, and manufacturing precision, these components ensure seamless material flow, less maintenance, and greater productivity across every link in the supply chain.

Cone-Shaped Self-Aligning Roller VS Conventional Self-Aligning Idlers

When selecting self aligning conveyor rollers for belt-conveying systems, it is vital to distinguish cone-shaped units from traditional lever-actuated self-aligning idlers.

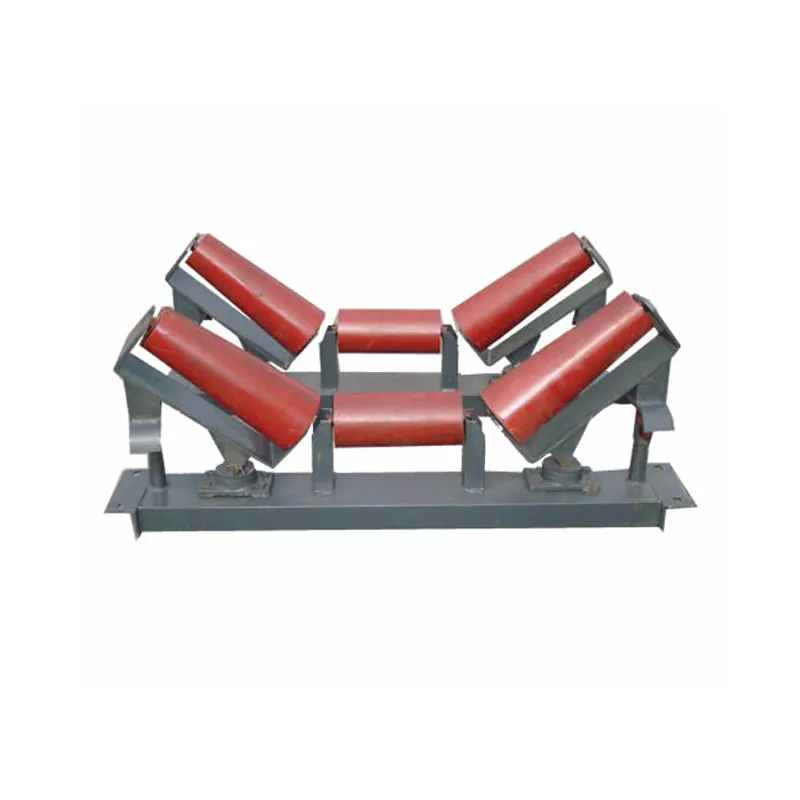

Conventional self-aligning idlers adopt straight cylindrical rollers with side trigger levers. Correction activates when misaligned belt presses against these levers to swing the whole bracket back and forth. This classic structure works for unidirectional conveying, yet it is direction-sensitive, delivering unstable performance if the belt runs in reverse. Exposed side levers are also vulnerable to impact from falling bulk materials in mining or port sites.

Our self-aligning roller features tapered cone-shaped rollers without external trigger levers. Centering force originates from differential rotational speed across tapered surfaces once belt drift occurs. It is less dependent on belt running direction, offering stable correction for both forward and reverse belt movement. Without protruding levers, the assembly avoids mechanical damage from falling ore and debris, well-suited for harsh-duty operating environments.

This passive self-aligning mechanism generates corrective thrust purely through physical contact between the conveyor belt and tapered roller faces, requiring no extra power sources or external actuators to function. Such working principle greatly cuts down mechanical failure points and lowers routine maintenance workload on site. Unlike traditional lever-actuated idlers that easily get jammed by bulk material buildup, this roller unit keeps responsive even under continuous material impact and heavy dust pollution, delivering consistent belt-tracking performance for long-run conveyor operations.

Manufactured with reliable sealing construction, our self aligning roller for belt conveyor maintains low rotational inertia, wear-resistance and anti-corrosion capacity. Minimal moving-part exposure cuts failure risks. It fits new conveyor builds as well as retrofitted existing lines, effectively limiting belt-edge wear, material spillage and unplanned downtime. Operators gain dependable belt-tracking performance while lowering long-term maintenance expenditure.

Working Principle of Cone-Shaped Self-Aligning Roller

Unlike traditional conveyor belt rollers, self aligning conveyor rollers with cone-shaped profiles rely on mechanical differential speed instead of external contact levers to realize belt centering.

When conveyor operation stays stable, the belt remains centered, and rollers rotate evenly under normal friction. Once external factors trigger belt drift toward one side, the belt surface presses onto the tapered section of the roller body. Due to varying diameters across cone ends, contact points generate different rotating speeds. This speed difference creates lateral corrective thrust, gradually pushing the misaligned belt back toward the central track of the frame.

As a complete assembly, self aligning roller for belt conveyor is fitted with a pivoting swing base to assist fine adjustment during correction progress. The whole set responds passively to belt movement, requiring no extra power supply or manual intervention. Reliable sealed bearings guarantee flexible rotation, keeping small rotational inertia even under heavy-load impacts from bulk materials.

This passive mechanical principle suits continuous-running facilities in mines, power plants and docks. It delivers stable correcting effect whether the belt moves forward or reverses. Reasonably arranged self-aligning rollers restrain continuous belt offset, mitigate edge abrasion and material spillage, and avoid frequent shutdowns caused by belt deviation. Combined with its wear-resistant and anti-corrosion features, the unit maintains steady correcting performance through long-term harsh-condition operation.

Self-Aligning Roller for Belt Conveyor: Automatic Belt Tracking Solution for Stable Conveyor Operation

When conveyor belts operate under continuous loading conditions, even minor belt deviation can affect material flow stability and increase wear on conveyor components. A Self-Aligning Roller is designed to automatically correct belt tracking problems by guiding the conveyor belt back toward its center position, helping maintain smoother operation without frequent manual adjustment. Unlike standard conveyor rollers that mainly provide support, self-aligning rollers use a special cone-shaped structure to generate corrective forces when belt movement occurs. The tapered design allows the roller to respond to lateral belt deviation and restore proper alignment, making it suitable for conveyor systems where belt tracking accuracy is critical.

HG cone-shaped self-aligning rollers with a focus on stable performance and reliable conveyor operation. These self aligning conveyor rollers are widely used in industries such as steel plants, power stations, ports, and coal mines, where conveyors often operate under demanding working conditions. The cone structure not only improves belt correction performance but also contributes to overall operating stability. By reducing the impact of belt deviation, the self aligning roller for belt conveyor helps maintain smoother material transportation and supports longer service life of conveyor systems.

Designed with wear-resistant materials and reliable sealing, these rollers withstand harsh industrial environments. Lightweight build and low rotational inertia enable smooth efficient rotation, and anti-corrosion properties ensure stable performance across diverse working conditions.

Featuring good self-lubrication, the rollers lower sticking risks and cut lubrication demands for long-term service in demanding scenarios. Resistant to repeated impacts and vibration, they fit heavy-duty conveyor applications perfectly.

For systems facing temperature fluctuations, the self-aligning roller operates reliably from -40℃ to 90℃. Simple installation allows integration into various conveyor structures without complex procedures.
Combining automatic belt tracking with robust mechanical construction, delivers dependable conveyor roller solutions for enhanced belt stability and consistent material-handling performance.

Improving Conveyor Reliability with Self-Aligning Roller Technology

Modern bulk material handling systems require stable belt operation to maintain continuous production and reduce problems caused by belt deviation. A Self-Aligning Roller provides an automatic tracking solution by guiding the conveyor belt back toward its center position when lateral movement occurs. This design helps improve conveying accuracy and supports more reliable operation in industries where belt alignment is critical. It effectively minimizes material spillage and belt wear triggered by deviation, cutting frequent maintenance work and unplanned downtime for bulk-material conveyor systems under continuous running conditions.

The increasing demand for efficient and stable conveyor systems has made self aligning conveyor rollers an important component in automated material handling applications. With a cone-shaped structure, the roller creates a corrective force through different rotational speeds on both sides, allowing the belt to return to its normal tracking position without constant manual adjustment. This mechanism is particularly suitable for highly automated production lines and industrial transportation systems sensitive to belt deviation.

HG focuses on developing durable conveyor components designed for demanding industrial environments. The company’s cone-shaped self-aligning rollers feature wear resistance, long service life, lightweight construction, reliable sealing, and anti-corrosion performance, providing stable support for heavy-load conveying applications such as steel mills, power plants, docks, and coal mines to reduce unexpected on-site equipment failures.

Designed for long-term industrial use, the self aligning roller for belt conveyor offers good self-lubricating performance and can withstand repeated impacts and vibrations during operation. Its anti-static, anti-combustion, and anti-aging properties allow it to perform under different working conditions, while the wide operating temperature range from -40℃ to 90℃ expands its application flexibility. By combining automatic belt correction with durable mechanical design, HG’s self-aligning roller solutions help conveyor operators maintain smoother material transportation and improve overall system reliability. Easy installation and maintenance-free operation further support efficient use across various industrial conveying environments.

The benefits of Cone-Shaped Self-Aligning Roller

In conveyor systems where belt tracking stability is essential, the structure of the roller plays an important role in maintaining smooth material transportation. A Self-Aligning Roller with a cone-shaped design uses the difference in roller diameter between both ends to generate a corrective force when the belt moves away from its normal position. When the belt contacts the tapered surface, different linear speeds are created between the large and small ends of the roller, producing a lateral guiding force that helps move the belt back toward the center.

Unlike traditional self-aligning systems that rely on external guide arms or mechanical trigger components, cone-shaped self aligning conveyor rollers achieve automatic correction through their own tapered geometry. This design reduces dependence on exposed components and provides a simpler structure with fewer potential damage points, making it suitable for demanding environments such as mining operations, ports, and other heavy-duty material handling applications.

Another advantage of the cone-shaped structure is its suitability for conveyors with different running directions. Compared with some conventional guiding systems that are sensitive to belt movement direction, the tapered roller design can provide belt correction performance during both forward and reverse conveying conditions, offering greater flexibility for complex conveyor layouts. The cone-shaped roller is commonly installed together with roller bracket, allowing the tapered surface and the slight movement of the bracket to work together. This combination improves the response of the alignment system when belt deviation occurs. As part of a self aligning roller for belt conveyor solution, the compact roller structure also features low rotational resistance and smooth operation when combined with sealed bearings.

With its simple mechanical principle, reliable belt tracking function, and strong adaptability to industrial conditions, the cone-shaped self-aligning roller provides an effective solution for improving conveyor stability and maintaining continuous material handling performance. It removes extra complicated lever structures that are vulnerable to debris blockage, greatly reducing potential failure risks during daily operation. Thanks to its bidirectional correction capacity, the roller works steadily whether the conveyor runs forward or reverses. It helps cut unplanned downtime caused by belt deviation, lowering on-site maintenance costs for bulkmaterial conveying systems across various heavy-duty industrial scenarios.
