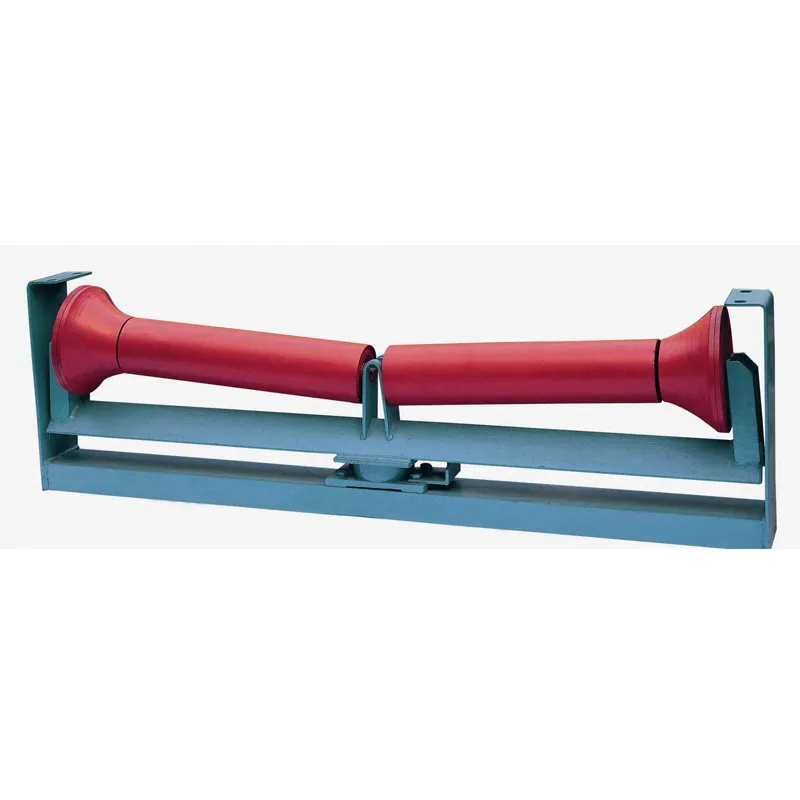

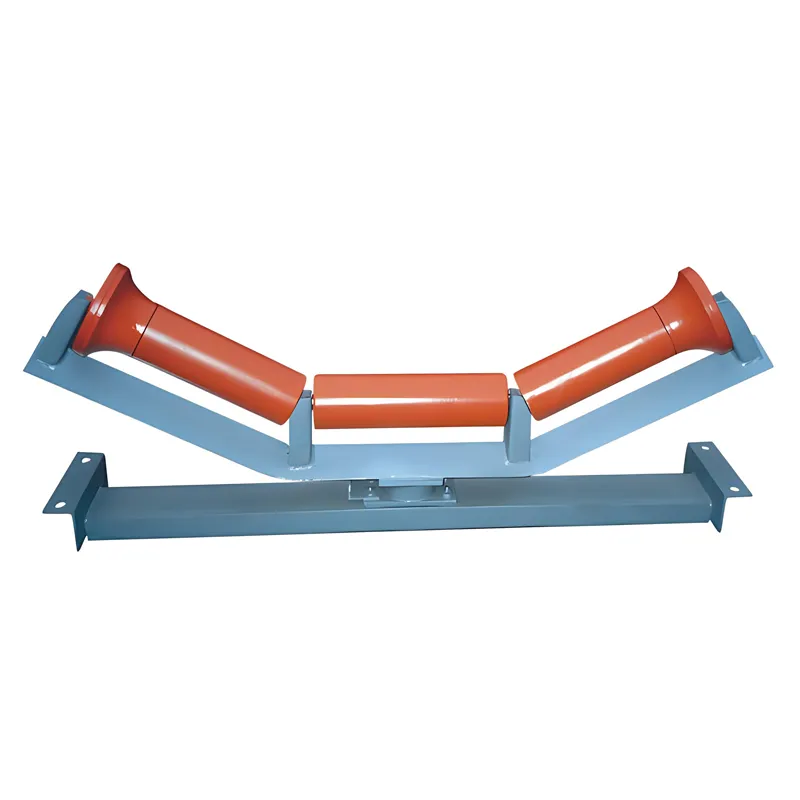

Friction Self-Aligning Bracket For Belt Conveyor

The centering bracket of the conveyor is a key component of the conveyor belt correction system, which achieves efficient anti deviation function through structural optimization and material upgrading, and is suitable for scenarios such as mines, coal mines, ports, etc.

Advantages Of Friction Alignment Bracket

1.The self-aligning roller bracket has strong support, high flexibility, low friction, and long service life.

2.The heart regulating effect is significant, and the structure is simple, which can fully meet the needs of modern homework development.

The Function And Function Of Friction Self-aligning Bracket:

Correction and prevention of deviation

By adjusting the angle and position of the bracket, the lateral displacement of the conveyor belt caused by uneven material distribution or equipment vibration can be offset, ensuring operational stability.

Reduce wear and tear

Reduce abnormal friction between the belt and the roller, and extend the service life of the conveyor belt and drum by 16.

Adapt to complex working conditions

Designed for high humidity (such as coal transportation) and dusty environments, corrosion-resistant materials (stainless steel, alloys, etc.) are used to enhance durability.

Typical application scenarios of friction self-aligning bracket

Coal transportation

The patented design of the centering bracket adopts a V-shaped discharge structure to prevent coal slurry adhesion and reduce the frequency of shutdown cleaning.

Mining transportation

The bracket group equipped with buffer rollers can absorb material impact and reduce the impact of equipment vibration on the belt.

Port loading and unloading

Stainless steel brackets resistant to salt spray corrosion are suitable for high humidity environments, ensuring long-term stable operation.

How Does a Self-Aligning Bracket Improve Conveyor Stability?

In large-scale conveying systems, misalignment is one of the most common issues that disrupt material flow, cause belt wear, and lead to unnecessary maintenance downtime. Roule’s Friction Self-Aligning Bracket For Belt Conveyor provides an intelligent mechanical solution to this persistent challenge. Built with precision and backed by years of engineering experience, this bracket ensures that the conveyor belt maintains perfect alignment even under uneven loading or dynamic tension.

The design of the self aligning bracket is centered on a friction-based correction mechanism. As the belt deviates from its intended path, the bracket’s friction roller detects the misalignment and automatically adjusts the roller’s angular position. This gentle correction process prevents belt damage, reduces edge wear, and maintains a consistent conveying line without human intervention. The result is smoother operation, longer belt life, and reduced energy consumption.

Roule’s engineers have optimized the bracket geometry to achieve maximum sensitivity and stability. Each unit is fabricated from high-strength steel with precision-welded joints, ensuring both rigidity and durability. The bracket’s surface receives a corrosion-resistant treatment, making it suitable for demanding environments such as mining, cement, and port handling facilities. The combination of mechanical strength and precision adjustment allows it to perform reliably even in high-load, continuous operation systems.

Another key feature is ease of maintenance. The self-aligning mechanism operates purely mechanically, without the need for external sensors or power. This simplicity translates into higher reliability and minimal upkeep. Operators can easily inspect or replace components without specialized tools, reducing maintenance downtime.

The Friction Self-Aligning Bracket For Belt Conveyor represents Roule’s engineering philosophy—creating durable, intelligent products that enhance system efficiency through thoughtful design. For industries that depend on uninterrupted material flow, this bracket ensures that every belt stays on track, day after day, load after load.

Why Is Roule’s Self-Aligning Roller Bracket Ideal for Harsh Conditions?

Industrial conveying systems often operate in harsh and unpredictable environments, where factors like uneven material distribution, vibration, and dust accumulation can cause belt deviation. Roule’s Self-aligning roller bracket was specifically developed to tackle these challenges with precision and resilience. It combines a rugged construction with a self-correcting mechanism that keeps conveyor belts aligned and running smoothly, no matter the working conditions.

At the heart of the design is Roule’s friction-responsive alignment system. When the belt begins to wander, the bracket’s guide rollers detect the lateral movement and pivot the entire assembly slightly to counteract the deviation. This real-time adjustment minimizes frictional stress on the belt edges and prevents premature wear. Compared to manual alignment methods, this self-regulating feature drastically reduces the need for operator intervention and inspection frequency.

The Self-aligning roller bracket is built to withstand extreme conditions commonly found in mining, metallurgical, and bulk-handling industries. Each bracket is made from heavy-gauge steel plates, reinforced with welded ribs for additional rigidity. The friction rollers are mounted on sealed bearings that protect against dust and moisture, ensuring consistent rotation even in contaminated environments. Every component is treated with an anti-corrosion coating for long-term durability.

Another major advantage of Roule’s design is its compatibility with various belt widths and configurations. Whether the conveyor is handling coarse aggregates or fine powders, the bracket maintains accurate belt tracking across diverse material loads. This adaptability helps minimize spillage, extend roller life, and enhance overall operational safety.

Every Friction Self-Aligning Bracket For Belt Conveyor produced at Roule’s facility undergoes load testing and dynamic simulation to verify stability and responsiveness. The company’s stringent quality standards guarantee that each product can handle demanding workloads while maintaining smooth, automatic alignment.

In environments where downtime costs thousands per hour, Roule’s self-aligning solutions offer both peace of mind and measurable performance advantages. By preventing belt misalignment before it becomes a problem, this bracket saves time, reduces costs, and protects valuable equipment investments.

What Sets Roule’s Friction Self-Aligning Bracket Apart in Design and Reliability?

True innovation lies not in complexity but in practical, dependable design—and Roule’s Friction Self-Aligning Bracket For Belt Conveyor exemplifies this philosophy. It delivers a perfect balance between mechanical simplicity and functional intelligence, ensuring continuous, stable operation across various industrial sectors. For companies that demand both precision and durability, Roule’s self-aligning technology stands as a proven solution.

Roule’s self aligning bracket distinguishes itself through its robust structural framework and superior alignment sensitivity. The bracket’s frame is precision-cut and welded using advanced fabrication equipment, ensuring consistent dimensions and load capacity across every unit. The self-aligning assembly utilizes frictional contact between the belt and rollers to detect movement deviations instantly. This allows the system to make subtle, automatic corrections without external sensors or electronic control systems—an advantage that guarantees reliability in remote or power-limited installations.

Durability is another cornerstone of Roule’s design. The bracket’s key components are manufactured from treated steel with excellent tensile strength, and all pivot points feature sealed, maintenance-free bearings. These design decisions significantly reduce lubrication frequency and component fatigue, making the product ideal for long-term use in mining, port, and quarry applications.

Roule’s production process emphasizes both quality and consistency. Each bracket is subjected to mechanical endurance and corrosion-resistance testing before shipment. The company’s integrated 6000-square-meter factory and experienced technicians ensure that every batch meets international standards for safety and performance.

The installation process is equally straightforward. The bracket can be mounted directly onto existing conveyor frames without modification, allowing for quick upgrades during scheduled maintenance. Once installed, it continuously corrects belt misalignment, preventing spillage and extending the service life of both belts and rollers.

In industries where uptime defines profitability, the Self-aligning roller bracket offers exceptional return on investment. By minimizing manual maintenance and enhancing system stability, it not only safeguards equipment but also contributes to smoother, more efficient production. Roule’s reputation for quality engineering and its focus on real-world reliability make this bracket the preferred choice for companies that can’t afford compromise.
