HENGGUANG conveyor belts have been supplied to a wide range of applications From mine to port, power plants to cement, chemicals, fertilizers and agribusiness, the performance is proven in many different industries.

Description

Product Tags

Belt width: B500-B2500, etc. Other widths can be customized.

Belt thickness: Starting from 5mm, other thicknesses can be customized.

Materials: EP/NN100, EP/NN125, EP/NN150, EP/NN200, EP/NN250, PVC, etc.

Upward convex patterns: humanoid patterns, Y-shaped patterns,

fan-shaped patterns, bar patterns, etc. Various patterns can be customized.

Excellent resistance against trapped material & cake build-up on pulleys Excellent impact resistance and cut & gouge resistance Superior abrasion & wear resistance under extreme conditions Less permanent elongation & belt stretch Best choice in rough operating conditions.

Carcass: 2-6 rot-resistant plies made of synthetic EP Or NN fabric,provide longitudinal strength and shape.

Cover rubber: includes top cover and bottom rubber,which are designed to protect the carcass from abrasion ,impact,deterioration, water and other injurious influences.

High tensile strength, good impact resistance,excellent trough ability, low elongation,long service life and cost-effective.

Suitable for medium and long distance,heavy load and high speed transportation of materials. Widely used in mining, quarries, cement,iron and steel industry,etc.

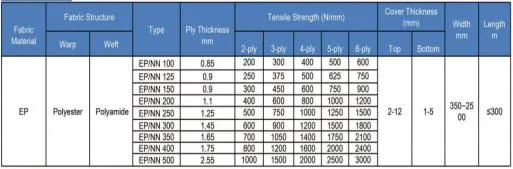

Parameter：

Read More About electric conveyor belt

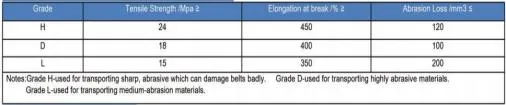

Physical Properties Of Rubber Cover：

electric conveyor belt

food conveyor belt

stainless steel conveyor belt

Ultra-Durable High Wear-Resistant Nylon Conveyor Belt – Built for Demanding Applications

Engineered with multiple nylon fabric plies, our conveyor belt delivers exceptional resistance to abrasion and impact in mining, quarrying, and heavy industry operations. The reinforced structure maintains flexibility while withstanding constant friction from sharp or rough materials.

Long-Lasting Nylon Conveyor Belt – Reduced Downtime, Increased Productivity

Our specialized nylon-reinforced belt outlasts conventional rubber belts in high-wear environments. The smooth surface minimizes material sticking while the embedded nylon cords provide superior tensile strength for heavy-load operations.
