High Quality And Strong Partition Conveyor Belt

Core material of partition conveyor belt: ordinary cotton canvas (CC), polyester cotton blended canvas (CP), nylon (NN), polyester (EP), steel wire rope (ST), etc. Belt width of partition conveyor belt: 500mm-2000mm

The fabric layer of the partition conveyor belt is 2-20 layers.

Cover adhesive for partition conveyor belt: working surface: 1.5-15mm, non working surface: 0mm-6mm, other sizes can be customized.

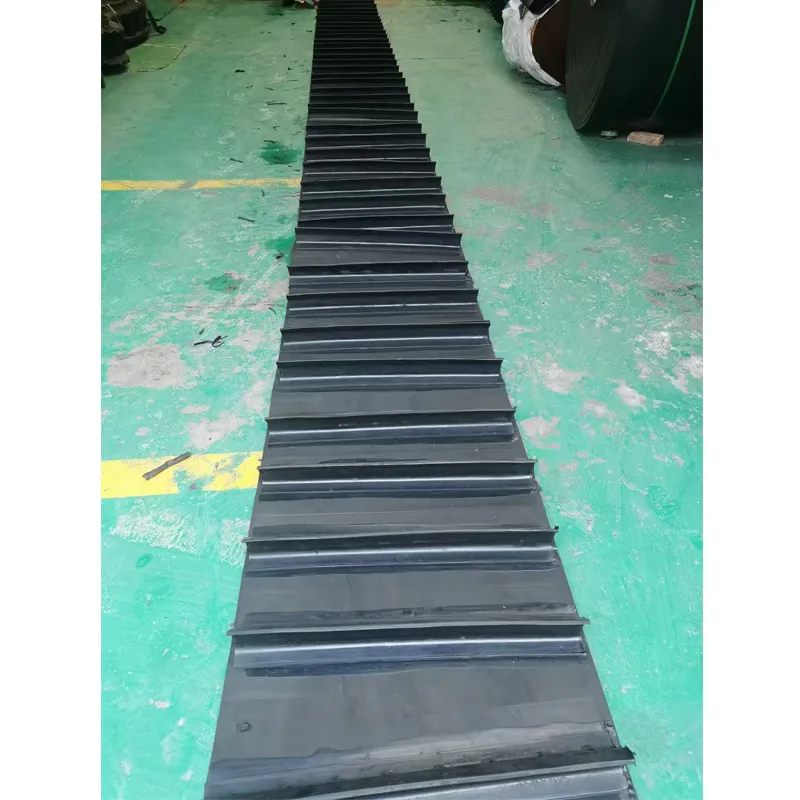

The partition conveyor belt consists of two parts: the base belt and the transverse partition. The function of the bulkhead is to support materials.

The base tape of the partition conveyor belt requires a certain tensile strength and wear resistance. For partition conveyor belts with empty edges, in order to meet the requirements of angle change, the longitudinal direction of the tape needs to be flexible, while the transverse direction requires a certain degree of rigidity.

The Function And Classification Of Partition Conveyor Belts

1.Control the direction of materials

The partition of the conveyor belt can control the direction of materials during the conveying process, avoiding situations such as material deviation and crossing, and maintaining the position of materials on the conveyor belt.

2.Improve conveying capacity

Installing conveyor belt partitions can increase the storage capacity of materials and improve conveying capacity.

3.Reduce the entry of miscellaneous items

The partition of the conveyor belt can prevent debris from entering the conveyor belt, ensuring the normal use of the conveyor belt.

Classification Of Conveyor Belt Partitions

According to material classification, conveyor belt partitions can be divided into rubber partitions, plastic partitions, steel partitions, etc.

According to their usage, conveyor belt partitions can be classified into straight partitions, comb shaped partitions, corrugated partitions, edge blocking partitions, etc. Among them, the straight partition is mainly used to prevent material mixing, the comb shaped partition is suitable for longer conveying distances, the corrugated partition can increase friction to resist material sliding, and is more effective in inclined conveying. The edge blocking partition can prevent material overflow.
