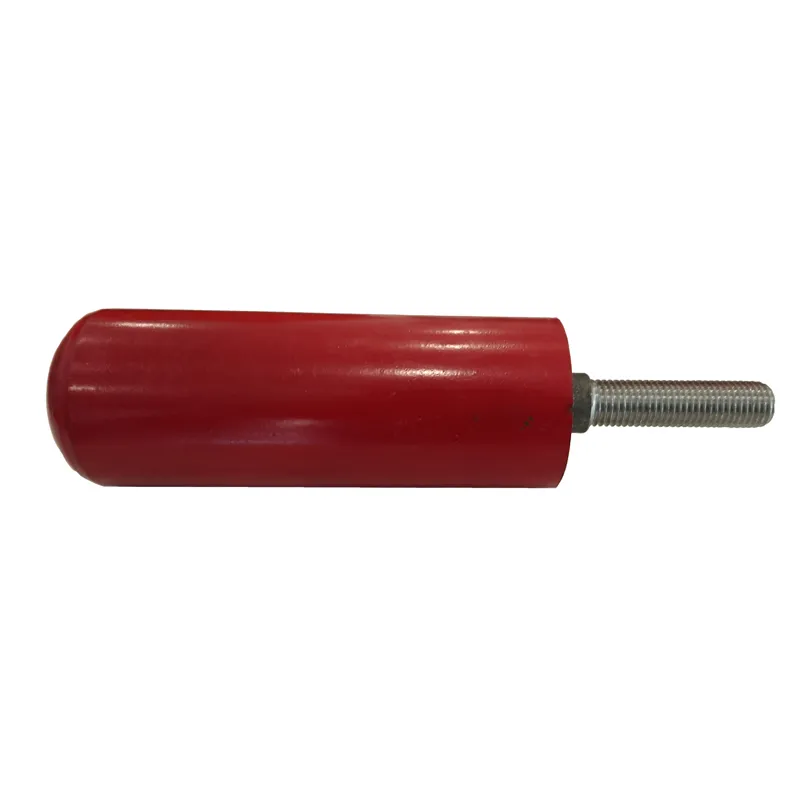

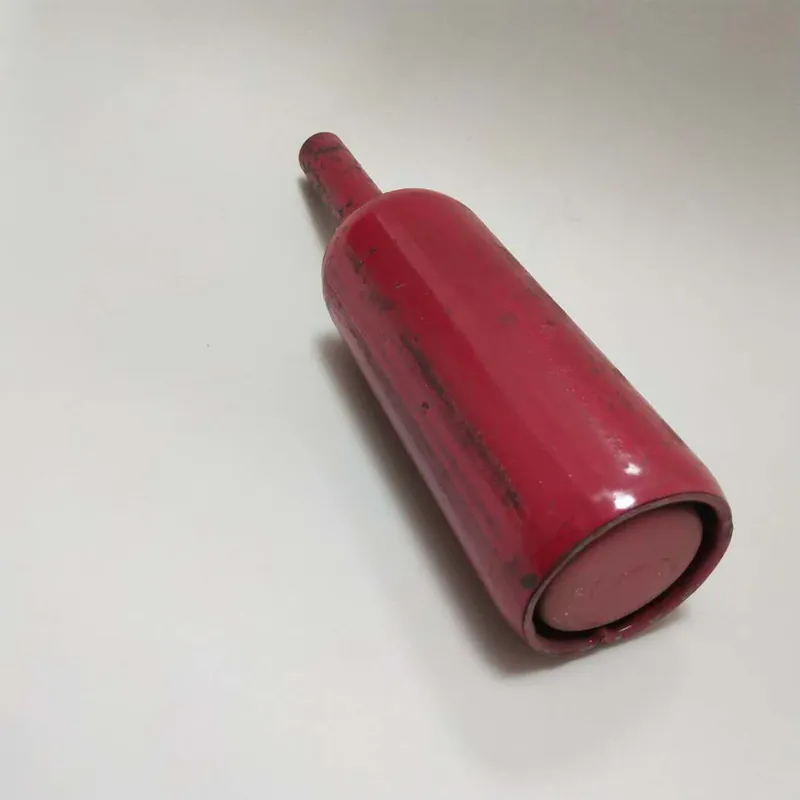

Belt Conveyor Barrier Roller
Belt conveyor barrier roller, also known as vertical roller, is a device mainly connected to the centering bracket and is usually installed on both sides of the belt conveyor.When the conveyor belt deviates, one side of the stop roller is compressed. The stop roller rotates around the rotating shaft on the rotating mechanism through the motion rod, and the shaft drives the tension rod to rotate. Finally, the tension rod pushes the entire roller group to rotate by an angle, causing the conveyor belt to return to its normal position.
The Role Of The Roller In The Belt Conveyor Is Mainly Reflected In The Following Aspects:
Correction: When the belt deviates during the conveying process, the stop roller can forcibly correct the belt by rotating itself, returning it to the correct running trajectory.
Adjusting tension: By cooperating with the tension regulator, the stop roller can adjust the tension of the belt, ensuring that the belt operates at the appropriate tension state, thereby ensuring the stable operation of the conveyor.
Buffer impact: The blocking roller can play a role in buffering and shock absorption, reducing the impact force of materials on the belt and ensuring the smooth transportation of materials.
In addition, the number and arrangement of blocking rollers will have an impact on the performance of the belt conveyor. Generally, the more blocking rollers there are, the less likely the material resistance is to be reduced, resulting in low energy consumption and minimal changes in belt speed. The arrangement of the blocking roller affects the falling position and unloading speed of the material.
Precision-Engineered Barrier Rollers for Maximum Stability
Precision-Engineered Barrier Rollers for Maximum StabilityOur Belt Conveyor Barrier Rollers are crafted with high-strength materials and advanced sealing technology to withstand harsh conditions. Whether handling abrasive loads or high-speed transport, they provide superior belt guidance and impact resistance for long-term reliability.
-
Casting Rubber RollerThe buffer roller group is installed below the receiving section of the conveyor to reduce the impact of materials on the conveyor belt during material dropping, thereby extending the service life of the conveyor belt.
-
Parallel Ceramic Rollers For ConveyorCeramic rollers are composite components composed of ceramic bodies, bearings, shafts, and plastic labyrinth seals.
-
Spiral Conveyor RollerSpiral rollers are mainly used to clean debris adhered to adhesive tape and can also play a role in adjusting deviation.
-
Self Aligning Friction RollerFriction roller is a mechanical structure composed of a drum, shaft, and bracket, which plays a role in supporting materials, transmitting power, and maintaining stability during the movement of a conveyor belt.
-
Belt Conveyor Triple Roller StringThe triple roller set is different from the roller set. The rollers are connected by pins and fixed to the steel pipes on both sides with climbing hooks. This makes the roller set both lightweight and easy to disassemble. Reduced costs. It is quite flexible to use.
-
Return Comb Shaped RollerComb type idler, also known as comb type cleaning idler, is used in belt conveyors for transporting viscous materials. Elastic exclusion type annular rubber rings are placed on the surface of the roller body at intervals, and ABS plastic isolation rings are arranged in sections. To eliminate the sticky substances on the carrying surface of the conveyor belt.
-
Wear Resistant and Corrosion-Resistant Nylon RollerNylon idlers have many advantages, including high wear resistance, self lubrication, corrosion resistance, aging resistance, excellent mechanical properties, low noise and long life. These advantages have made nylon rollers widely used in various industrial fields.
-
Groove Type Friction Self-aligning RollerThe self-aligning roller is commonly used in fixed belt conveyors to adjust the deviation of the conveyor belt.
