Permanent Magnet Iron Remover

The interior of the permanent magnet iron remover is composed of a composite magnetic system made of special permanent magnets such as neodymium iron boron with high coercivity and high remanence. It has the advantages of maintenance free, strong magnetic force, long service life, simple installation, convenient use, and reliable operation. Suitable for removing iron from non-magnetic materials on belt conveyors, vibrating conveyors, electromagnetic vibrating feeders, flat iron removers, and discharge chutes. Remove 0.1-35 kilograms of ferromagnetic material, with an internal permanent magnet system service life of over 10 years.

When the permanent magnet adsorbs a large amount of ferromagnetic material, it can be manually removed with a non-magnetic scraper or gloves, which is suitable for continuous work and situations with low iron content.

1.Select the correct equipment based on the requirements of impurity removal rate and the environment of the construction site;

2.When installed at the head of the belt conveyor, due to the inertia of the material, it is in a loose state when leaving the belt, which is conducive to removing ferromagnetic materials from the material;

3.When installing this equipment in the middle of the belt conveyor, the idler roller can be changed to a non-magnetic flat idler roller, which further improves the iron removal effect;

4.When the on-site environment is special and the situation is complex, special design should be carried out for the user to meet the requirements of the special situation;

5.When using multi-stage iron removal, the iron removal sharpness of the later stage should be too sharp than that of the earlier stage, otherwise a low iron removal effect will occur.

What Makes a Permanent Magnet Iron Remover Different from Other Magnetic Separators?

In heavy industries, where material purity directly impacts product quality and equipment performance, the Permanent Magnet Iron Remover offers a powerful yet energy-efficient solution for removing ferrous contaminants. Unlike electromagnetic separators that require continuous electrical power to generate a magnetic field, permanent magnetic systems utilize rare-earth or ferrite magnets to provide constant magnetic force without consuming energy. This inherent advantage makes them both cost-effective and environmentally sustainable for long-term industrial use.

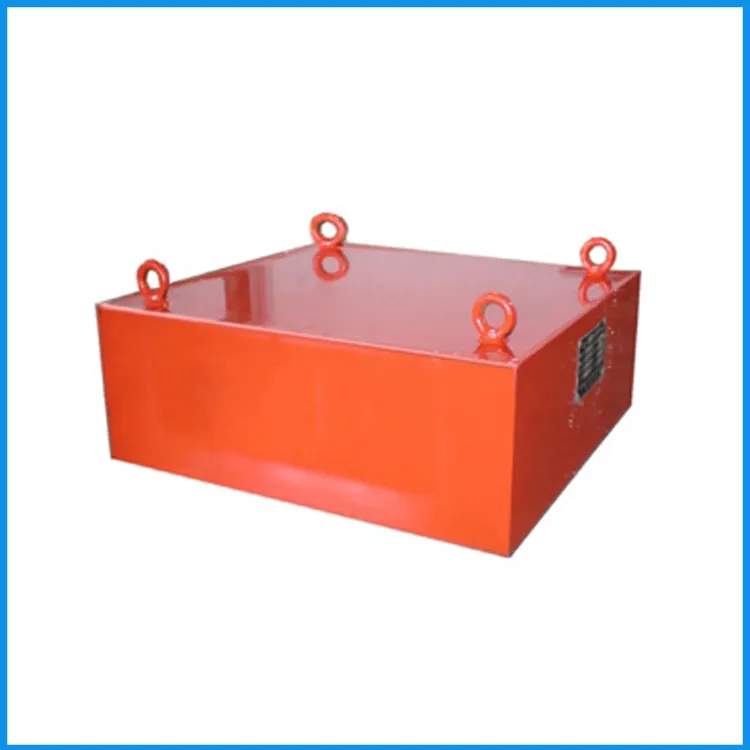

The permanent magnet iron remover is typically designed as a suspended unit above conveyor belts, vibrating feeders, or chutes. Its powerful magnetic field penetrates the conveyed material flow, capturing ferrous debris such as bolts, nails, and steel fragments. Once collected, these impurities adhere firmly to the magnet surface until they are manually cleaned or automatically discharged via a belt-type self-cleaning mechanism. The design eliminates the need for complex electrical components, resulting in a simpler, more robust structure with minimal maintenance requirements.

At Hebei Roule Conveyor Machinery Manufacturing Co., Ltd., the permanent magnet iron remover is engineered with precision and reliability at its core. The magnets are made using high-performance ferrite and neodymium materials, ensuring strong magnetic retention and resistance to demagnetization even under high-temperature or heavy-duty environments. The steel housing is built with superior anti-corrosion coatings, while the magnetic circuit is carefully optimized to maximize field depth and coverage area. These structural refinements guarantee both stable performance and long operational life.

The most significant distinction of Roule’s permanent magnetic design lies in its combination of mechanical integrity and consistent magnetic strength. Because there is no coil to heat or power source to maintain, the system runs silently, with zero risk of electrical failure. It’s ideal for remote or energy-limited environments, such as mining sites, port terminals, or mobile conveyor systems. Operators value its plug-and-play simplicity—once installed, the machine works continuously without requiring calibration or monitoring.

By eliminating the need for electricity while maintaining exceptional separation efficiency, the permanent magnet iron remover embodies the balance between technological simplicity and industrial reliability. It stands as a cost-efficient, maintenance-free, and sustainable solution for modern production lines that prioritize both performance and environmental responsibility.

How Does a Permanent Magnet Iron Remover Improve Material Processing Efficiency?

In any production environment, from mining and cement to food processing and recycling, material purity and process reliability are non-negotiable. The Permanent Magnet Iron Remover plays a vital role in achieving these goals. By capturing ferromagnetic impurities before they enter crushers, grinders, or mixers, it prevents equipment wear, avoids contamination, and ensures consistent product quality. What sets it apart is not only its powerful magnetic force but also its capacity to operate continuously without human supervision or power consumption.

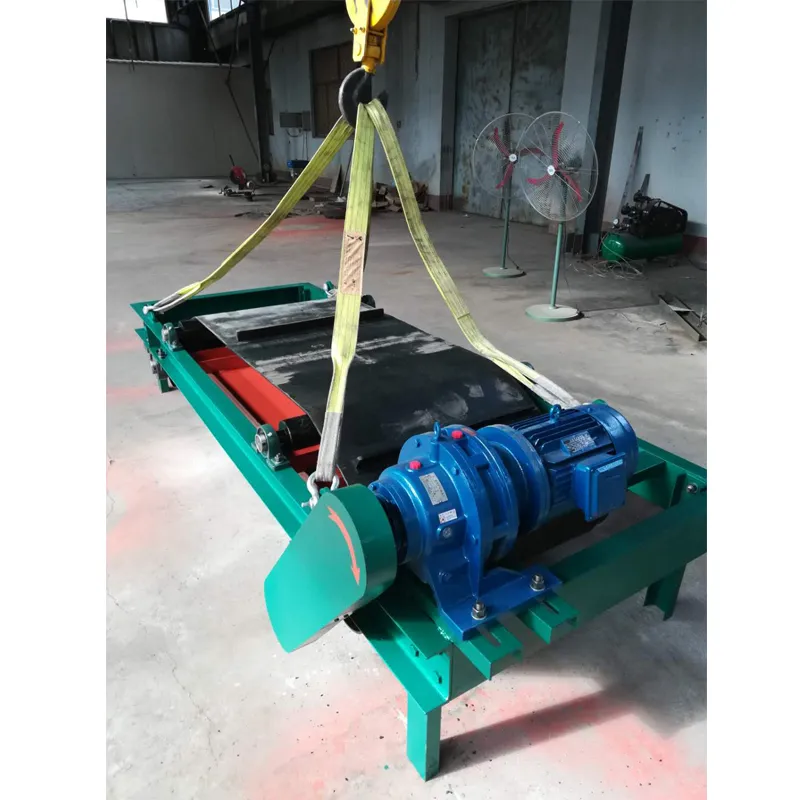

Roule’s permanent magnetic systems come in several configurations, including manual-cleaning suspended magnets, self-cleaning overband separators, and magnetic plates integrated into conveyors. For applications where continuous operation is critical, self-cleaning models automatically discharge captured iron using a moving belt system, reducing downtime and labor costs. For smaller-scale facilities, the manual type offers simplicity and reliability at an even lower operational cost. Both types share a common advantage: durability and magnetic stability that do not degrade over time.

The permanent magnet iron remover can adapt to various material flows and particle sizes. In mining operations, it removes tramp metal from crushed ores, protecting downstream crushers. In cement plants, it ensures raw material purity by eliminating metallic fragments from limestone or coal. In recycling facilities, it separates steel cans and other ferrous materials, improving the recovery rate of non-metallic resources. In every scenario, its consistent magnetic field strength ensures reliable performance, regardless of temperature, humidity, or load variation.

Energy efficiency is another major factor driving the adoption of permanent magnetic separators. Since they require no electrical input, they generate no operating cost beyond occasional cleaning. This makes them ideal for facilities pursuing energy conservation or operating in off-grid locations. Over the course of years, the cost savings can be substantial, particularly when compared to electromagnetic systems that rely on continuous power supply and periodic coil replacement.

In essence, Roule’s permanent magnet iron remover is more than just a piece of machinery—it’s a long-term investment in productivity, safety, and sustainability. By combining simplicity with advanced magnetic engineering, it delivers reliable protection for critical processing equipment, reducing maintenance cycles and supporting uninterrupted production efficiency.

Why Choose Hebei Roule’s Permanent Magnet Iron Remover for Your Operation?

When it comes to industrial separation equipment, choosing the right manufacturer can make all the difference. Hebei Roule Conveyor Machinery Manufacturing Co., Ltd., with more than a decade of experience in conveyor systems and material handling solutions, has become a trusted partner for industries that demand performance and durability. Its Permanent Magnet Iron Remover represents the culmination of precise engineering, rigorous quality control, and a deep understanding of real-world operational challenges.

Every unit produced by Roule undergoes comprehensive testing to ensure magnetic field consistency, structural strength, and environmental resistance. The magnetic assembly is encased in heavy-duty steel, sealed against dust and moisture, and designed to endure the harsh conditions of mining, cement, and metallurgical environments. The result is a product that performs flawlessly, even under continuous exposure to vibration, impact, and temperature variation.

Roule’s permanent magnetic separators are also fully customizable. The company offers a variety of dimensions, suspension heights, and magnetic strengths to meet specific production needs. Clients can request optional stainless-steel covers for food-grade applications, or anti-corrosive treatments for coastal and chemical industries. Each design is optimized for efficient integration with existing conveyor systems, ensuring minimal modification and rapid installation.

Another advantage lies in Roule’s commitment to service. From consultation and design to installation and maintenance, the company provides comprehensive support to help customers achieve the best performance from their equipment. Its engineering team can simulate magnetic field coverage and separation efficiency using advanced modeling tools, allowing for tailor-made solutions that align perfectly with each plant’s layout and throughput requirements.

The strength of Hebei Roule’s permanent magnet iron remover lies not only in its magnetism but in the company’s pursuit of excellence. By combining decades of manufacturing expertise with a customer-focused approach, Roule delivers more than machinery—it provides confidence, reliability, and long-term value for every operation that depends on clean, efficient material handling.
