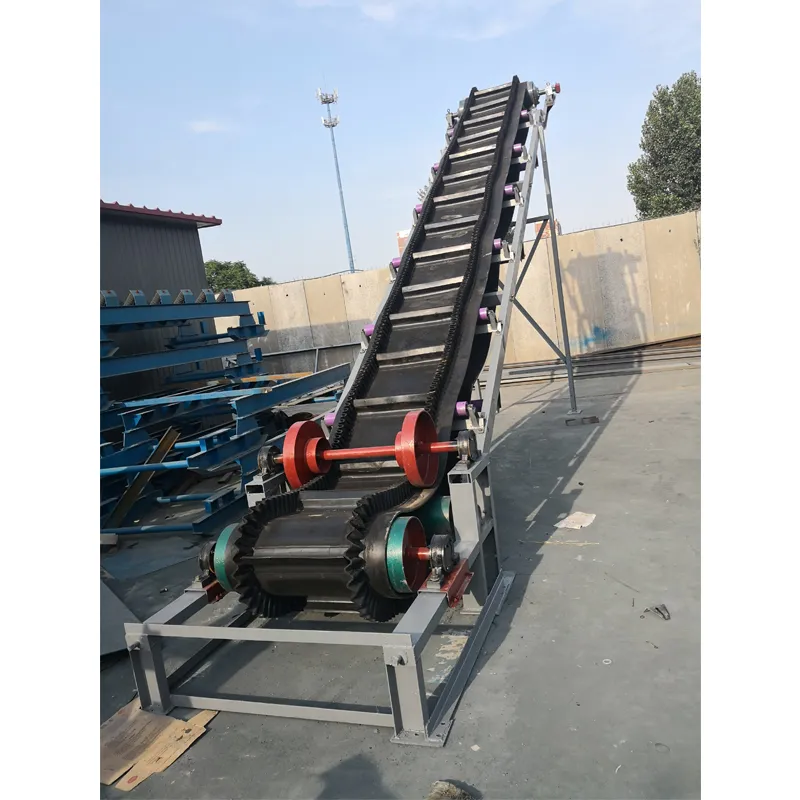

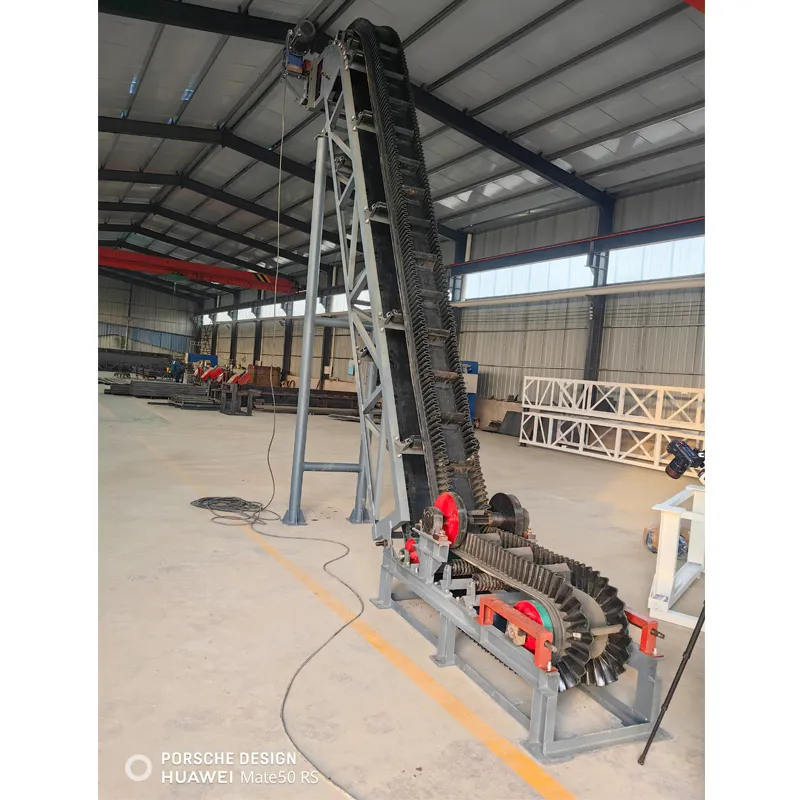

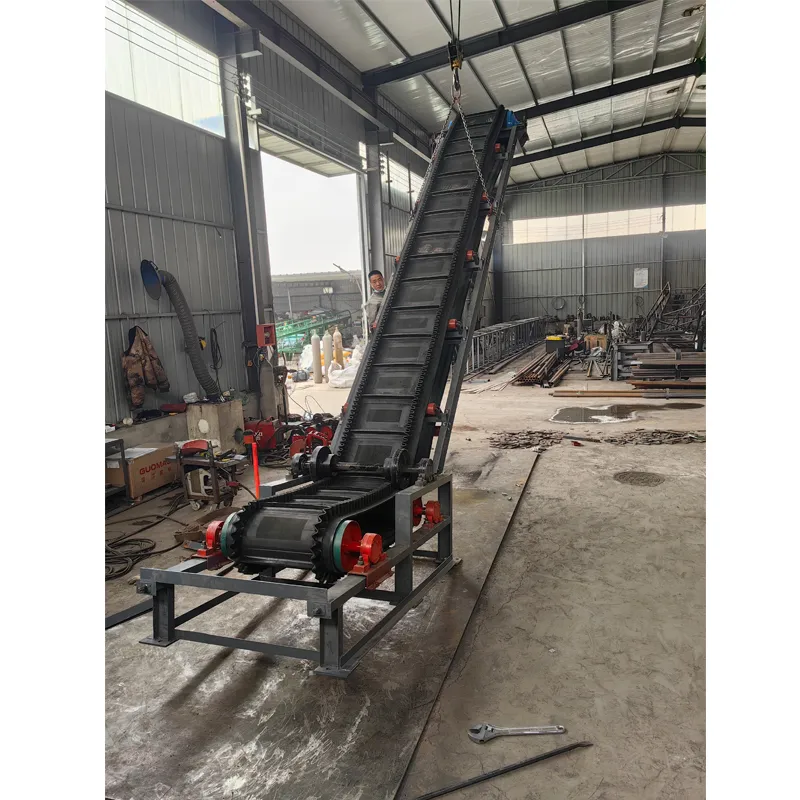

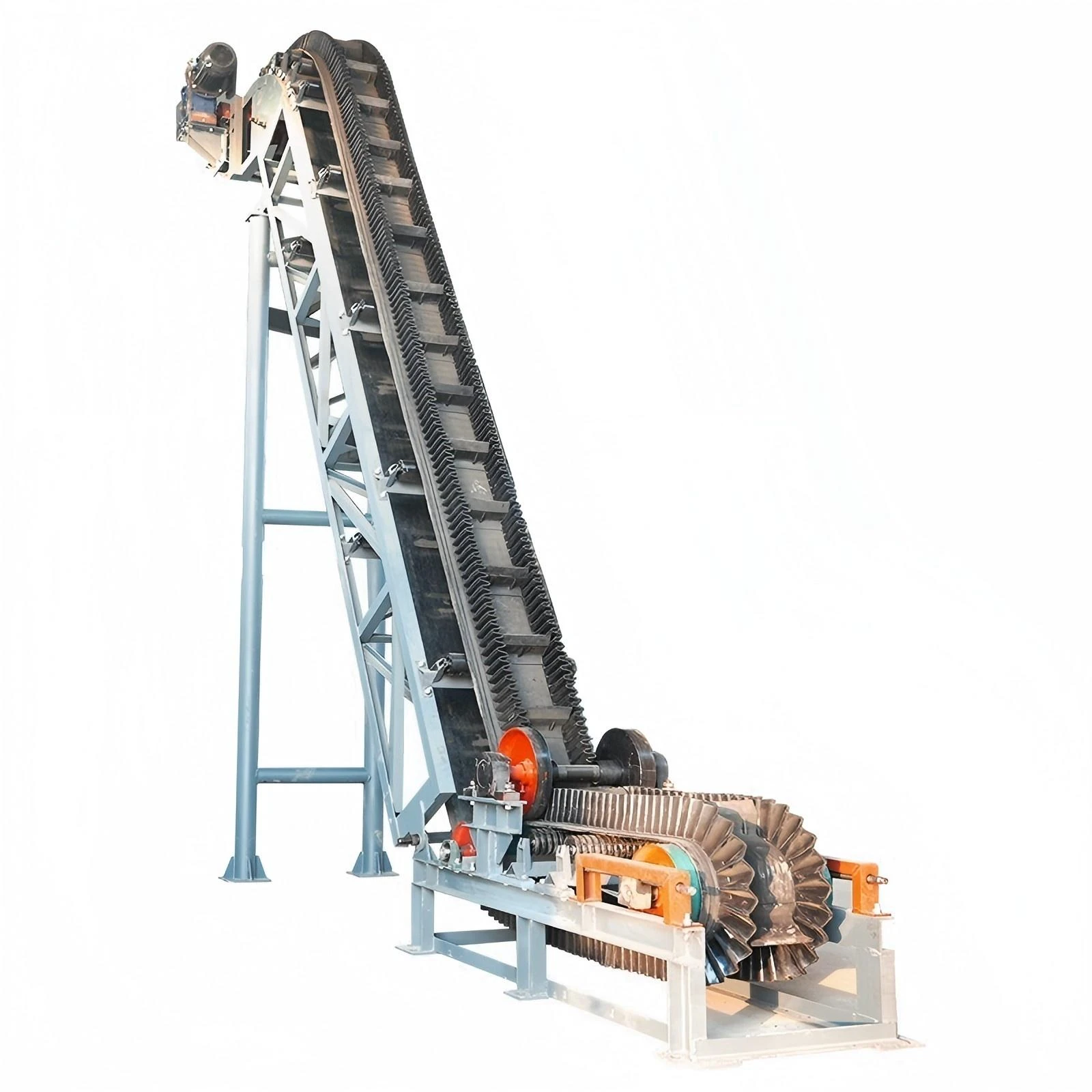

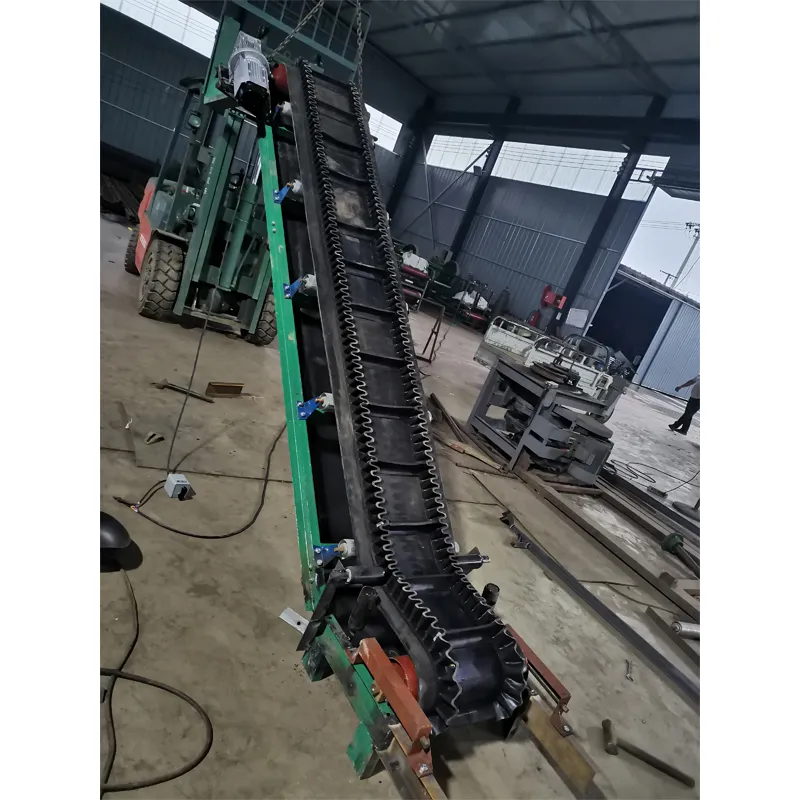

Large Angle Corrugated Edge Conveyor

Large angle conveyor, also known as wave type edge conveyor, is a type of conveyor with a wide range of applications. It is mainly used in vertical shafts, coal mines, subways, dump ships, continuous unloaders, grain, metallurgy, chemical industry, cement and other fields.

The edge blocking belt consists of a base belt, a blocking edge, and a partition. The appearance of the base belt is the same as that of a regular conveyor belt, but the lateral stiffness is greater: the blocking edge is wavy; the partition can be divided into T-shaped, C-shaped, and TC shaped according to its different cross-sections. The T type is suitable for situations where the inclination angle β ≤ 40 °, the C type is suitable for situations where the inclination angle β>40 ° and the material flowability is good, and the TC type is suitable for situations where the inclination angle β>40 ° and the material viscosity is high.

The large angle conveyor can transport up to 90 degrees and even achieve vertical conveying, making it suitable for situations where there is a height difference between floors. Due to its large angle conveying characteristics, it can reduce the footprint, save equipment investment and civil engineering costs, and has good comprehensive economic benefits. Smooth operation, low noise, without the common long chain, floating chain, and broken chain phenomena of chain transmission equipment and the common slipping and falling of bucket elevators, with high reliability. Large angle conveyors are widely used in industries such as metallurgy, mining, building materials, food processing, frozen food production lines, vegetable/fruit production workshops, etc. They are suitable for transporting bulk or bagged goods.

‌

The Advantages Of A Large Inclination Conveyor Include:

Simple structure and easy maintenance: It has the advantages of a universal belt conveyor, such as simple structure, reliable operation, and convenient maintenance.

Low energy consumption: There is no excavation resistance during loading and no internal or external friction of materials during operation, resulting in low energy consumption.

Strong flexibility: Horizontal conveying sections of any length can be set at the nose and tail of the machine, making it easy to connect with other conveying equipment.

Suitable for various materials: Suitable for various bulk materials, including ore, coal, sand and gravel, aggregates, fly ash, etc.

Preventing material overflow and accumulation: The special skirt and baffle design can effectively prevent material overflow or accumulation during transportation, maintain a clean working environment, and improve transportation efficiency
