Field Notes on Conveyor Belt Types: why steel wire rope belts keep winning
If you work around bulk materials, you learn fast that the simplest machine—the conveyor—decides uptime. Among the many Conveyor Belt Types, the steel wire rope (steel cord) belt is the quiet workhorse. To be honest, I used to think they were overkill for anything under a kilometre. Then I started collecting failure reports. Stretch, splice fatigue, heat, impact—steel cords solve a lot of that.
What it is, quickly

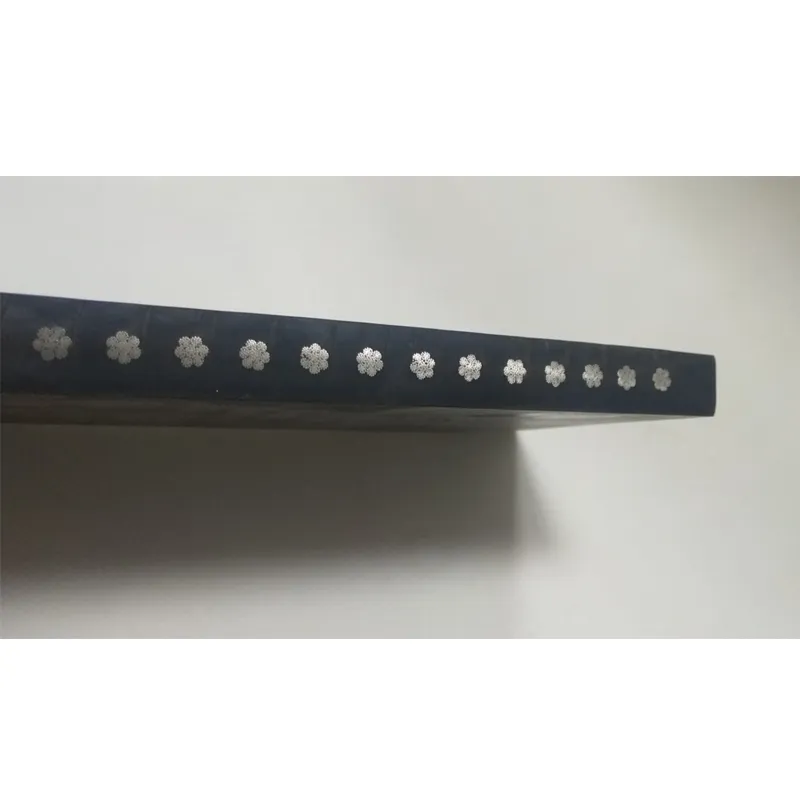

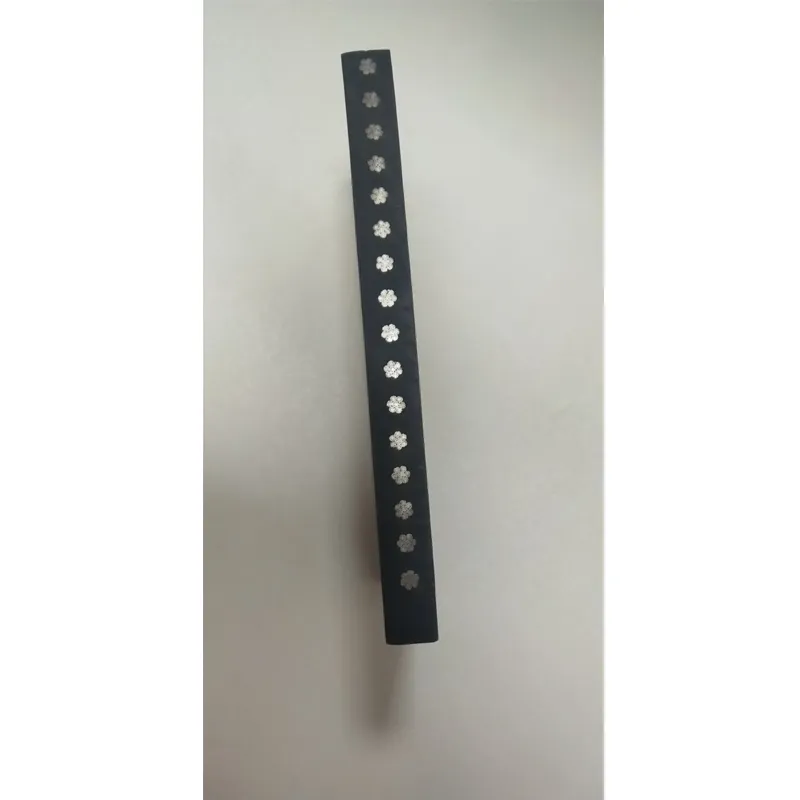

The High Strength Steel Wire Rope Conveyor Belt is, simply, a rubber conveyor belt with high‑tensile steel cords as the load‑bearing skeleton. Low elongation, high impact resistance, steady tracking. In fact, many customers say it’s the “fit‑and‑forget” option once the line is dialed in.
Typical specifications (real‑world use may vary)
| Belt Type | High Strength Steel Wire Rope Conveyor Belt |
| Tensile rating | ST800–ST5400 (N/mm) |
| Elongation at ref. load | ≤0.25% (ISO 15236‑1) |
| Width | 650–2400 mm (custom up to ≈3000 mm) |
| Covers | NR/SBR, EPDM (heat), Oil‑resistant; FR to ISO 340/EN 14973 |
| Cover thickness | Top 6–12 mm; Bottom 3–6 mm |
| Min. pulley Ø | ≈630–1600 mm (depends on ST rating) |
| Temp. range | ‑25 to +120 °C (EPDM up to 200 °C intermittent) |
| Splice | Hot vulcanized step/finger; dynamic efficiency ≥85% (ISO 15236‑3) |
| Service life | ≈8–15 years in overland duty, care‑dependent |
Process, materials, testing
Materials: high‑carbon steel cords with brass plating; skim rubber with cobalt‑based adhesion systems; wear‑optimized covers (abrasion per ISO 4649). Methods: cord tensioning and alignment, multi‑stage calendering, continuous curing. Testing: antistatic (ISO 284), flame (ISO 340/EN 14973), splice fatigue (ISO 15236‑3), and dynamic troughability. A recent batch I saw posted abrasion loss ≈80 mm³ and reference‑load elongation 0.18%—solid numbers.
Where it makes sense
Mining (overland, decline), ports and terminals, cement, steel, power, and quarries. Long hauls, high lift, sharp impacts—this is where Conveyor Belt Types with steel cords shine. Advantages: low take‑up travel, fewer splices, higher availability. Downsides? Upfront capex and specialized splice skills. Fair trade, in my book.
Vendor snapshot (selection)
| Vendor | Strengths | Certs | Lead time | Price index |
| HG Conveyor Belt (Origin: Room1109, Building C, Tianshan Galaxy Plaza, No. 358 Yuhua East Road, Shijiazhuang High tech Zone, Hebei) | High ST range, fast customization, technical splicing support | ISO 9001; ISO 284/340 compliance | ≈4–8 weeks | $$ |
| Global Brand A | Extensive service network, premium compounds | ISO 9001; EN 14973 | ≈6–12 weeks | $$$ |
| Regional Fabricator B | Competitive pricing, quick local service | ISO 9001 | ≈2–6 weeks | $–$$ |
Customization and trends
- Cover grades: abrasion (Y), high‑impact (X), heat, oil, FRAS.
- Breaker plies for anti‑tear; edge sealing for humidity and salt fog.
- Embedded rip‑detection loops or RFID tags—surprisingly popular now.
- IoT tension/temperature logging; better for planning shutdowns than firefighting.
Mini case notes
Overland mine, 23 km, ST3150: availability improved to 97%, take‑up travel cut by ≈40%, splice inspections quarterly instead of monthly. Port line, 2500 t/h, ST2000 with FR cover: heat‑checked rollers dropped; belt abrasion loss measured ≈85 mm³ after 8 months. As one supervisor put it, “it just runs.”
If you’re sorting through Conveyor Belt Types, shortlist steel cords when you need low stretch, long centers, or tough load profiles. I guess the only caveat is training your splice crew properly—the best belt can’t out‑perform a bad splice.
Authoritative references
- ISO 15236‑1: Steel cord conveyor belts — Design, dimensions and mechanical requirements.
- ISO 15236‑3: Steel cord conveyor belts — Special safety requirements for belts for general use (testing of splices).
- ISO 340: Conveyor belts — Laboratory scale flammability characteristics — Requirements and test method; ISO 284 antistatic.
- EN 14973: Conveyor belts for use in underground installations — Safety requirements.
- CEMA: Belt Conveyors for Bulk Materials, 7th Ed., design guidance widely adopted.
