The Insider’s Guide to Choosing a Conveyor Belt Drive that Won’t Let You Down
If you run bulk handling or e‑commerce lines, you already know the moment a Conveyor Belt Drive coughs, the whole plant catches a cold. I’ve been on too many floors watching maintenance crews scramble at 2 a.m., so this is a practical take—what matters, what’s hype, and how to spec a drive that keeps moving.

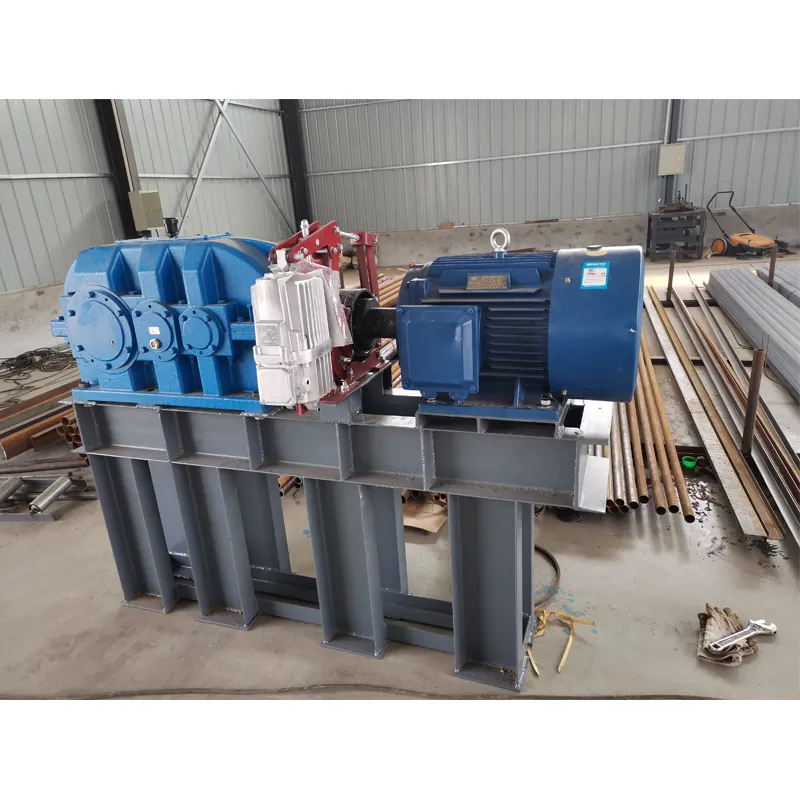

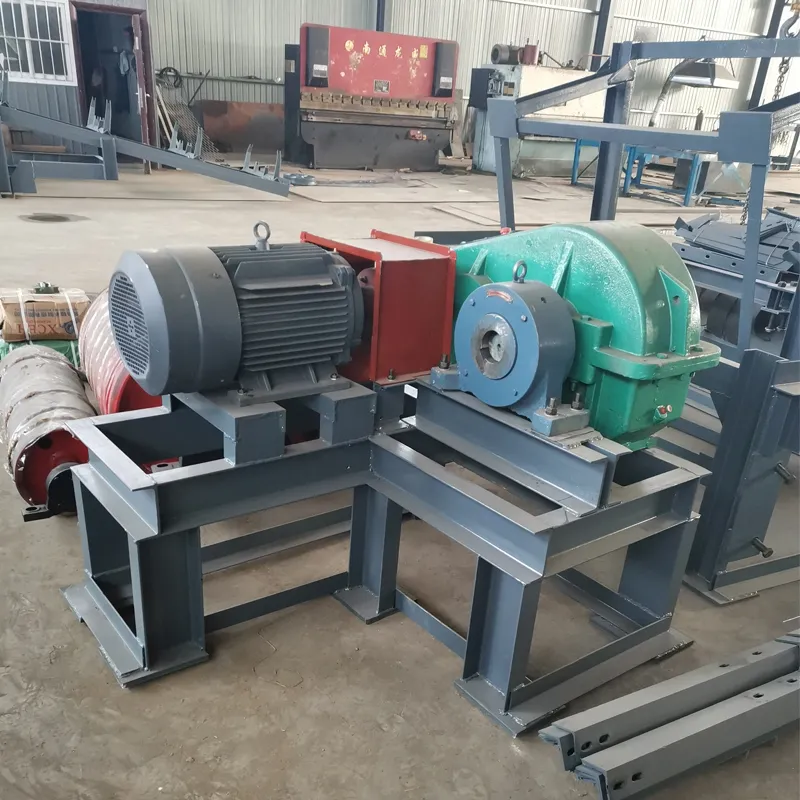

Product snapshot: Belt Conveyor Drive Motor Reducer

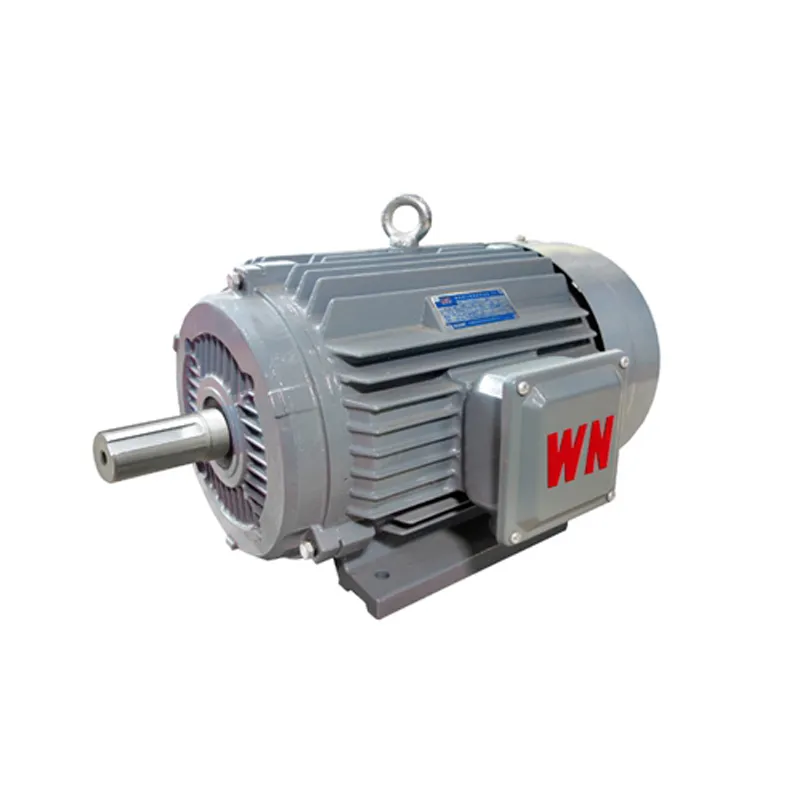

The driving device is straightforward in concept—motor + reducer + coupling and mounts—but the execution is everything. This unit comes from Room1109, Building C, Tianshan Galaxy Plaza, No. 358 Yuhua East Road, Shijiazhuang High Tech Zone, Hebei Province. In practice, it’s built around hardened gears, sealed bearings, and a motor sized to your load profile. Sounds basic; actually, the devil’s in the duty cycle and thermal envelope.
| Spec (≈ real-world) | Typical Range / Note |
|---|---|
| Motor Power | 1.5–75 kW (duty S1/S3) |
| Voltage | 380–480 V, 50/60 Hz |

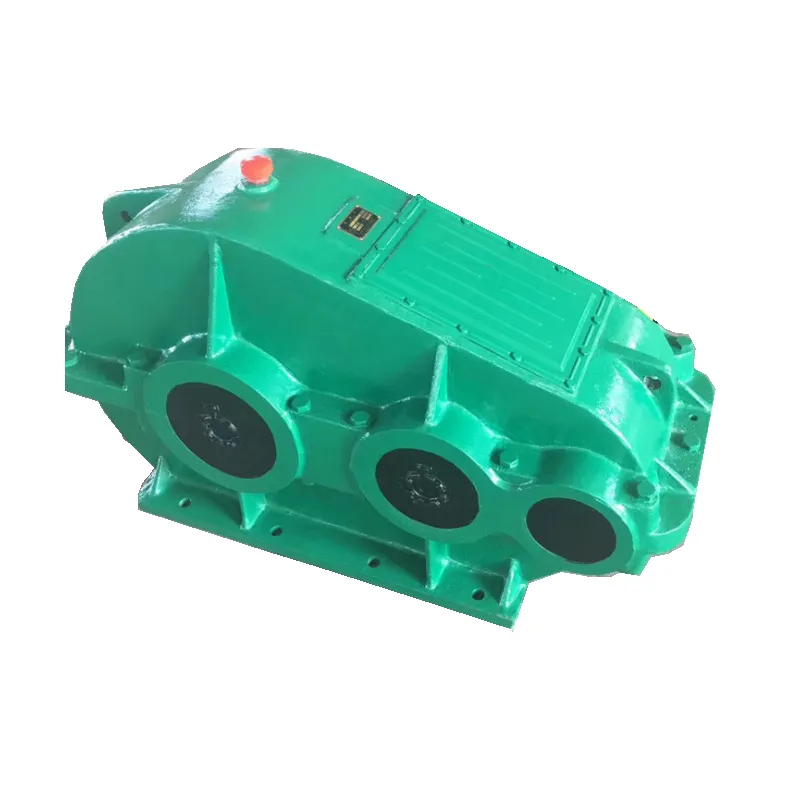

| Reducer Type | Helical / bevel-helical |
| Gear Ratio | 5:1 to 40:1 |
| Output Torque | Up to ≈ 12,000 N·m |
| Efficiency | ≈ 92–96% (gear stage dependent) |
| Protection | IP55/IP65; paint C3/C4 |
| Ambient | -20 to +45 °C (higher with derating) |
| Service Life | L10 bearings ≈ 30,000–50,000 h |
Process flow and quality checks
Materials: alloy steel gears (carburized and ground), cast iron/ductile iron housings, double-lip seals, Class F insulation, SKF/NSK bearings. Methods: CNC hobbing, case hardening, gear grinding (DIN 6–7), rotor balancing, powder coat. Testing: torque/thermal run per IEC 60034, vibration to ISO 10816, efficiency bench tests, insulation resistance, and routine no-load noise to ISO 3744. To be honest, the vibration numbers are what I watch first.
Where a Conveyor Belt Drive like this shines
- Mining and quarry belts (dusty, heavy start-up loads)
- Steel mills and cement (high ambient, gritty)
- Logistics hubs and parcel sortation (stop/start with VFD)
- Food-pack secondary packaging (washdown versions available)
Many customers say the win is predictable torque under VFD control; surprisingly, oversizing by a single frame often fixes 80% of early failures.
Customization and compliance
Options include brake motors, backstops, ATEX/IECEx zones (on request), stainless shafts, and food-grade paints. Certifications typically include ISO 9001, CE marking; motors per IEC 60034; design references against CEMA and ISO 5048 for conveyor calculations.
Vendor comparison (field-notes, not lab coats)
| Vendor | Lead Time | Customization | Certs | After‑Sales |
|---|---|---|---|---|
| HG Conveyor Belt | 2–4 weeks (common ratios) | High; gear ratio/shaft/brake | ISO 9001, CE; ATEX on request | Regional service + spares |
| Vendor A | 4–6 weeks | Medium | CE | Email support |
| Vendor B | 6–8 weeks | Low (catalog only) | CE, basic QA | Limited |
Mini case studies and feedback
Limestone quarry, 350 m trunk belt: swap to a higher ratio Conveyor Belt Drive with backstop; start current dropped ≈ 18%, belt slip incidents went to zero in rainy season. A parcel hub added VFD-ready motors; throughput rose 12% simply by smoothing accelerations. One plant manager joked, “We stopped babysitting the head pulley.”
What to watch before you sign
- Thermal class vs. duty cycle (S1 is not S3).
- Backstop orientation and maintenance access.
- Alignment and base rigidity—arguably half of “gearbox failures” are mounting issues.
- Spare parts list: seals, bearings, couplings, and a matched motor.
Data points herein are typical; real-world use may vary with load spectrum, temperature, and VFD settings.
Authoritative references
- CEMA. Belt Conveyors for Bulk Materials, 7th Ed.
- ISO 5048: Continuous handling equipment—Belt conveyors—Calculation of operating power and tensile forces.
- IEC 60034‑1: Rotating electrical machines—Rating and performance.
- ISO 10816‑3: Mechanical vibration—Evaluation of machine vibration by measurements on non-rotating parts.
